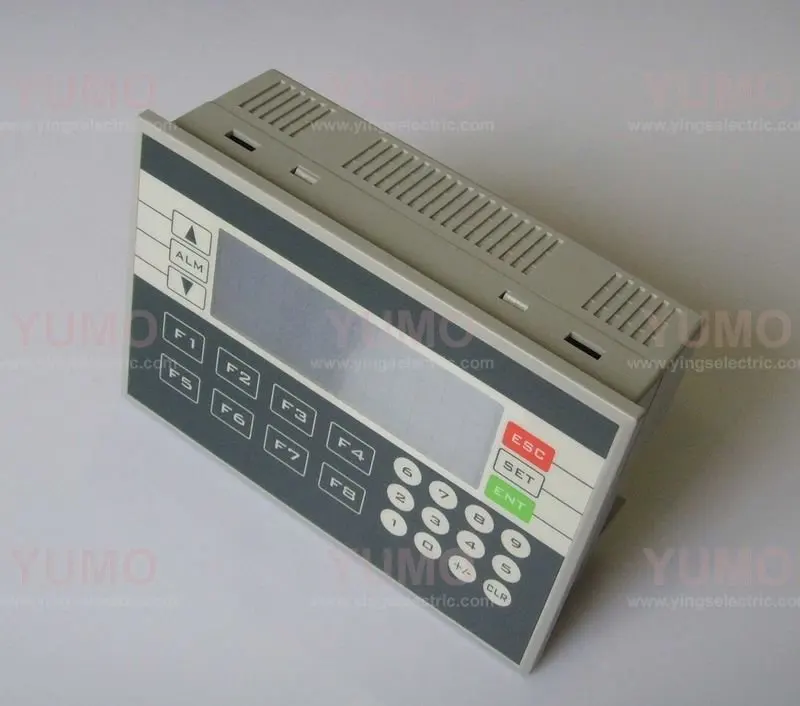

Intergrated PLC+HMI XP3-18R-C

FOB Reference Price:Get Latest Price
US $130-150 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
Integrated PLC and HMI
Power supply:
LCD display:
192*64 pixel 3.7inch
-S stands for internal timer and RS-485
Operation Temperature:
0~50 C degree
Storage Temperature:
-10-60 C degree
Ambient Humidity:
20~85%(Non-condensing, dry bulb)
Free of corrosive gas
Protect Configuration:
Interference Rejection:
Noise voltage: 1000Vp-p
Packaging & Delivery
Packaging Details
one pc in inner box, in export standard carton
Delivery Time


Integrated PLC and HMI
1.Well sold in the market
2.CE ,Rohs Approval
3, Simple installation
4.easy Programming


Product Description



PLC, Programmable logic controller,Integrated PLC+HMI XP3-18R-C DC24V 3W


1,Reasonable price and high quality
2, Well sold in the market
3, CE RoHs certification

 Performance & Features


This intelligent controller, adopting function block programming, having large programming capacity, being f reely
  fprogrammed according to different users and different fields, can run at your desired time table and the RTC
  accuracy can reach second and makes your time control more accurate. And up to 128 time sessions can
  be set , especially suitable for time-control system.
Safety password function makes your program absolutely safe. Before writing program, password can be set. And only
  after entering the correct password, can the program be modified.
It is equipped with a removable, convenient and programmable LCD, providing 64 friendly human-machine interfaces,
  32 virtual keys, having the function to display the alarming message and parameter and to modify the parameter.
  When needed, it can be installed. And when not needed, it can be removed and replaced with an ordinary front panel.
  Thus the cost will be greatly reduced.
The input can receive not only the digital input but also the analogue input to perform the control and . transmission of
  fthe temperature, moisture, pressure, flow level unit and so on.
It has well-featured and compact design with 8 point input and 4 point output. Equipped with expansion module, it can
  be expanded into 82 I/O better ,and to MAX 122I/O.It can be connected with telephone voice module and remote control
  module to perform the notification and alarming function. And the connection between the host and the module can
  be Bridge SR-CBA or flexible connection SR-ECBA.
The machine has short-circuit protection (internal) and relay output protection (external) function, which makes your
 usage safer and easier.


1) Control the switch quantity and set data directly on the panel
2) LCD Display: 192*64 pixels (3.7"), up to 500,000 hours life
3) 26 function keys can be defined freely
4) Support touch function

 Product Description

XP series

Integrated PLC & HMI, owns the same functions as XC3 series, 3.7 inch blue LCD
Digital input: 10 points/optical couple isolated
Digital output: 8 points/relay
Easy edit, abundant functionsv LCD display: 192× 64 pixel(3.7inh); Use life up to 500, 000 hours
Functional keys up to 26
Delicacy and precise keys
Use the same cable to Compile for HMI and PLC
Compact configure, save more space

Input voltage


Current Consumption

Less than 10W (TYP2.0W)

Allowable Momentary Power-cut

Less than 20ms

Voltage Endurance

AC1000V-10mA 1 minute (signal and ground)

Insulated Resistance

DC500V- about10MΩ (signal and ground)

Operation Temperature

0~50 C degree

Storage Temperature

–10~60 C degree

Ambient Humidity

20~85%(Non-condensing, dry bulb)

Vibration Resistance

10~25Hz (X,Y,Z directions for 30 minutes 2G)

Interference Rejection

Noise voltage: 1000Vp-p


Free of corrosive gas

Protect Configuration



A global quality electric organization
In order to obtain the highest quality all of
Products according to international standard IEC60898, IEC947-2

To be an enterprise lasting 150 years and beyond
To be an enterprise with a sales network all over 200 countries in the world.
To be the cooperative partner of General Electric

Better product, better service.

Cooperation, Sharing, Win-win

Enjoy the work, enjoy the life.
