7" TFT Display weintek weinview mt6071ie 7 inch HMI

FOB Reference Price:Get Latest Price
$177.00 - $178.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
MT6071iE
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Weintek
Screen Size:
7"
Type:
Resistive, 4-wire Resistive Type
Resolution:
800*480
Interface Type:
USB
Display:
7" TFT LCD
Brightness (cd/m2 ):
350
Contrast Ratio:
500:1
Accuracy:
Active Area Length(X)±2%, Width(Y)±2%
RAM/Flash:
128 MB
USB Host:
USB 2.0 x 1
USB Client:
USB 2.0 x 1
Power Isolation:
Built-in
Products Status:
Stock
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
cartons
Port
shanghai

7" TFT Display weintek weinview mt6071ie HMI



1.Feature
1. 7" 800x480 TFT LCD, LED Backlight
2.  Fan-less Cooling System
3. USB Client Port for downloading projects
4. COM2 and COM3 [RS485] support MPI 187.5K, please use one at one time
5.  NEMA4/IP65 Compliant Front Panel
6.  Built-in Power Isolation





2. Technical Parameter



Display Display7” TFT LCD
Resolution (WxH dots)800 x 480
Brightness (cd/m2)350
Contrast Ratio500:1
Backlight Type>30,000 hrs
Colors16M
Touch Panel Type4-wire Resistive Type
AccuracyActive Area Length(X)±2%, Width(Y)±2%
MemoryFlash128 MB
RAM128 MB
Processor 32 bits RISC Cortex A8 600MHz
I/O PortUSB HostUSB 2.0 x 1
USB ClientUSB 2.0 x 1
EthernetN/A
COM PortCOM1: RS-232, COM2: RS-485 2w/4w, COM3: RS-485 2w
RTC  Built-in
PowerInput Power24±20%VDC
Power IsolationBuilt-in
Power Consumption350mA@24VDC
Voltage Resistance500VAC (1 min.)
Isolation ResistanceExceed 50MΩ@ 500VDC
Vibration Endurance10 to 25Hz(X,Y,Z direction 2G 30 minutes)
Specification EnclosurePlastic
Dimensions WxHxD 200.3 x 146.3 x 35mm
Panel Cutout192 x 138mm
WeightApprox.0.6 kg
EnvironmentProtection Structure NEMA4 / IP65
Storage Temperature -10°~60°C (14° ~ 140°F)
Operating Temperature0°~50°C (32° ~ 122°F)
Relative Humidity 10% ~ 90% RH (non-condensing)
PCB CoatingN/A
CertificateCECE marked
Software  EasyBuilder Pro V4.10.04 or later versions

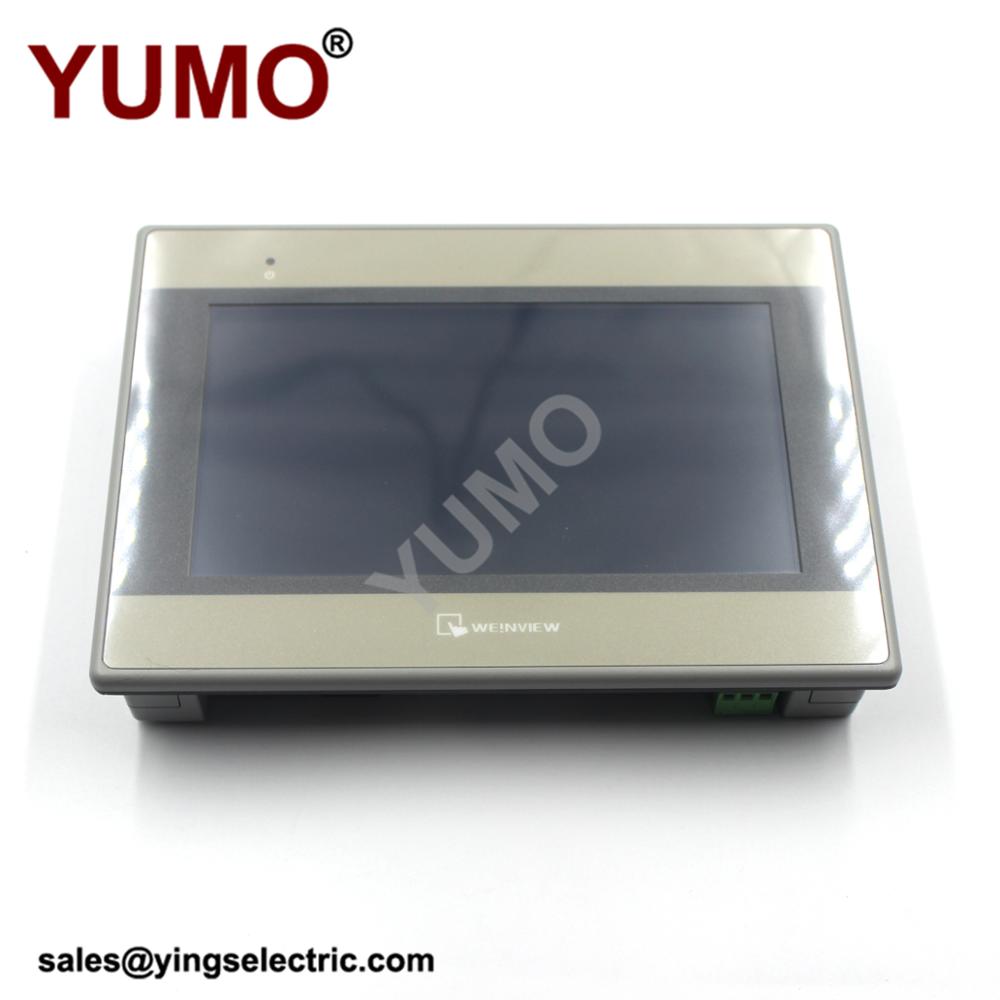

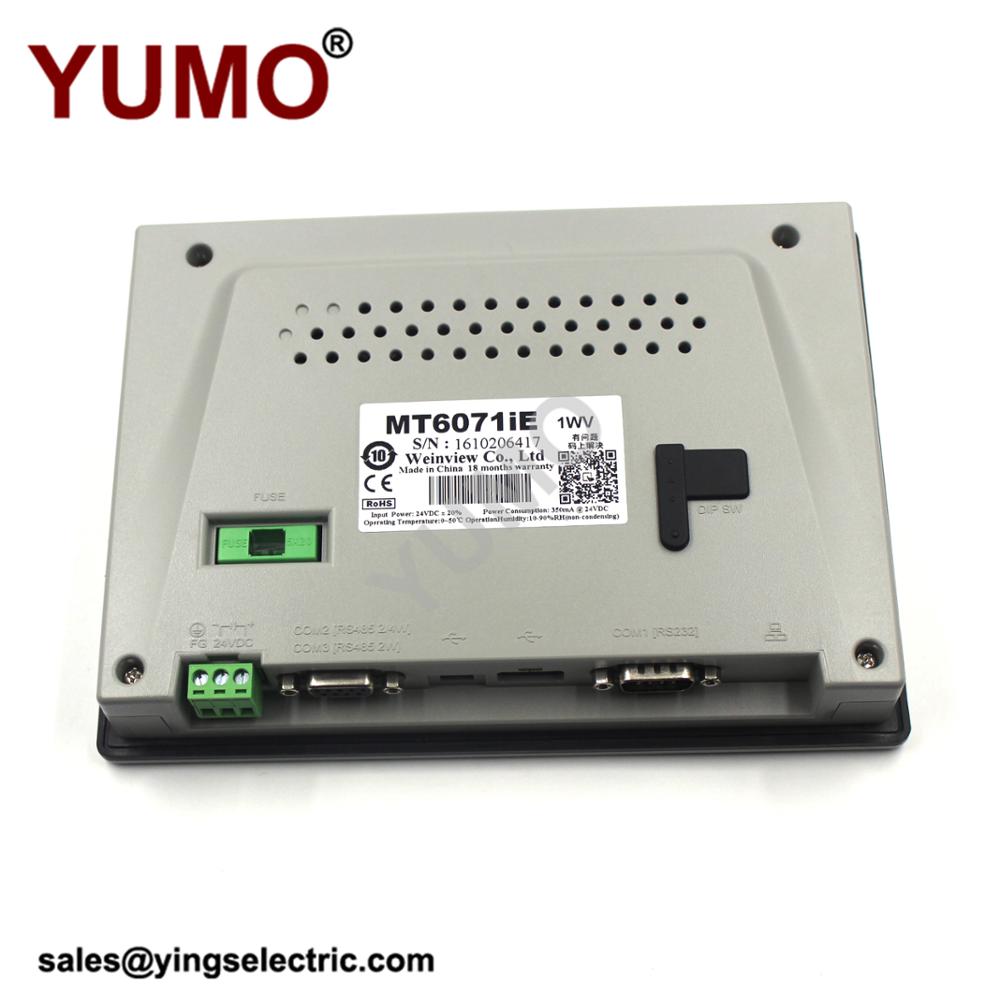

3. Photo

MT6071iE 1WV 02.JPGMT6071iE 1WV 04.JPGMT6071iE 1WV 05.JPG

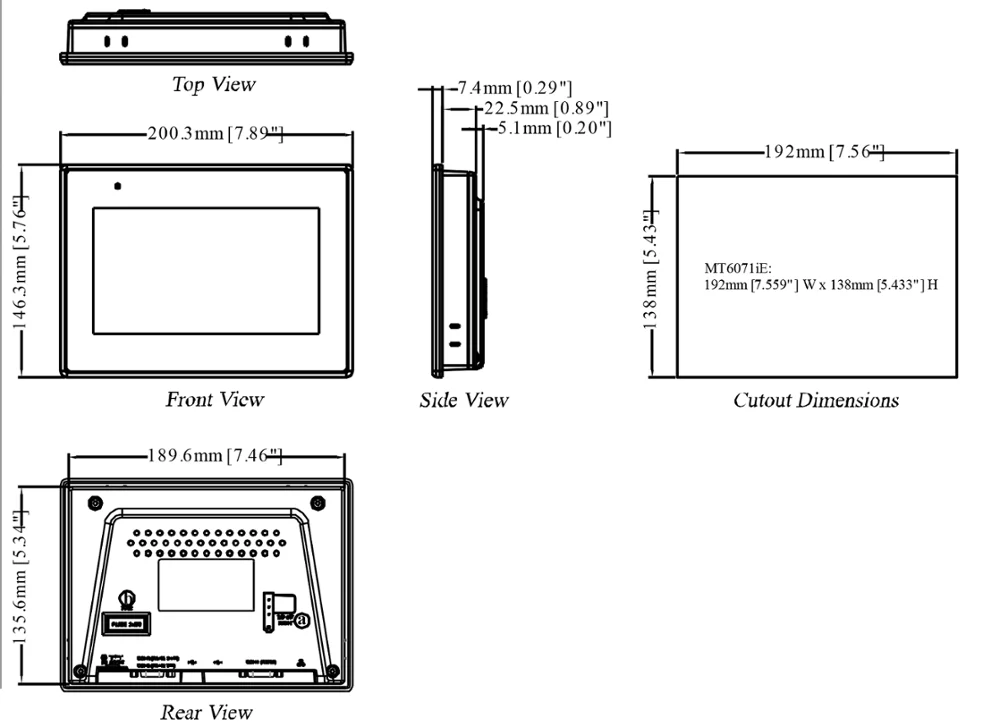

4. Dimension

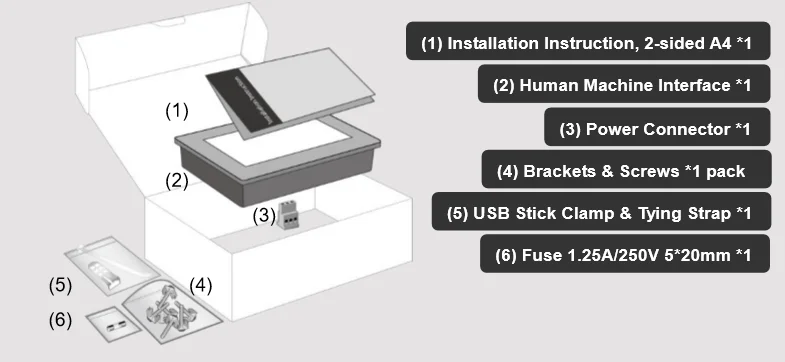

5.Packing




5.Note

Place the operator panel on a stable surface during installation. Dropping it or letting it fall may cause damage.
