Lb Series Metal Clamping Flexible Coupling

FOB Reference Price:Get Latest Price
$13.00 - $50.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Model Number:
Customized
Material:
Aluminium
Standard or Nonstandard:
Standard
Structure:
Metal Bellows
Flexible or Rigid:
Flexible
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
cartons
Port
shanghai
Lead Time :
3workdays

Use and characteristics
High torque rigidity and sensitivity.
Zero rotation gap.
The bellows structure compensates for radial, angular and axial deviations.
Clockwise and counterclockwise rotation characteristics are exactly the same.

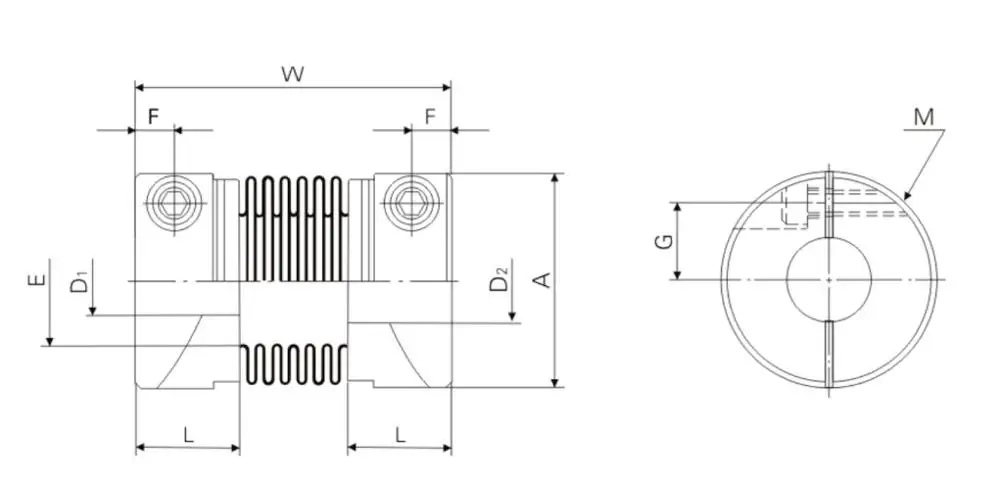

Dimensions

ModelDLd1 d2 shaft dia.L3ML1

Tightening torque

(N.m)

LB-B-16 30/XX/XX16304-842-m3*1010.50.7
LB-B-20 33/XX/XX20336-1242-m3*1010.50.7
LB-B-25 38/XX/XX25386-1252-m4*1212.51.7
LB-B-32 43/XX/XX32438-1462-m4*14141.7
LB-B-32 54/XX/XX32548-1462-m4*14141.7
LB-B-40 62/XX/XX40628-166.52-m5*2021.54
LB-B-55 72/XX/XX557210-1972-m6*25238
LB-B-65 81/XX/XX658112-3892-m8*2525.515
LB-B-82 103/XX/XX8210320-42112-m10*3034.528



Product features

Model

Rated torque

(N.m)

Maximum torque

(N.m)

Maximum speed

(rpm)

Inertia moment

(kg.m²)

Static torque rigidity

(N.m/rad)

Radial deviation (mm)

Angle deviation

(ºC)

Axial deviation

(mm)

Weight

(g)

LB-B-16 30/XX/XX0.81.6180003.4*10-71000.11.50.3~-1.08
LB-B-20 33/XX/XX1.53130008.9*10-71600.11.50.3~-1.014
LB-B-25 38/XX/XX24100002.8*10-62200.1520.5~-1.332
LB-B-32 43/XX/XX2.55100008.8*10-63100.220.5~-1.352
LB-B-32 54/XX/XX2.55100008.9*10-63100.220.5~-1.358
LB-B-40 62/XX/XX102080001.5*10-55200.220.7~-1.598
LB-B-55 72/XX/XX255060002.3*10-58500.220.7~-1.5200
LB-B-65 81/XX/XX6012045002.8*10-59600.220.7~-1.5350
LB-B-82 103/XX/XX8016040006.0*10-512900.220.7~-1.5750
